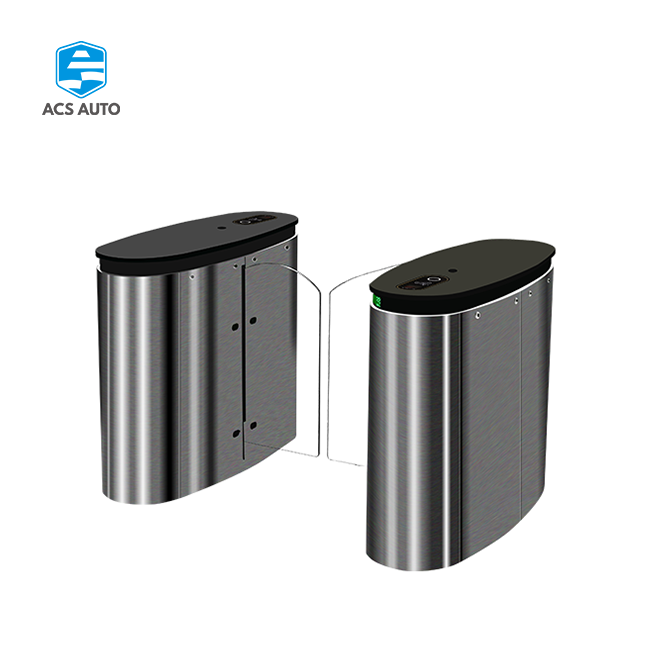

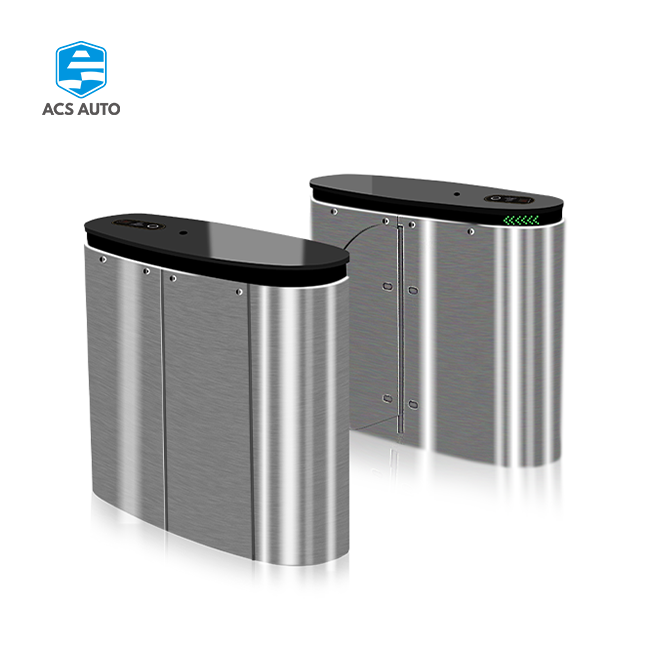

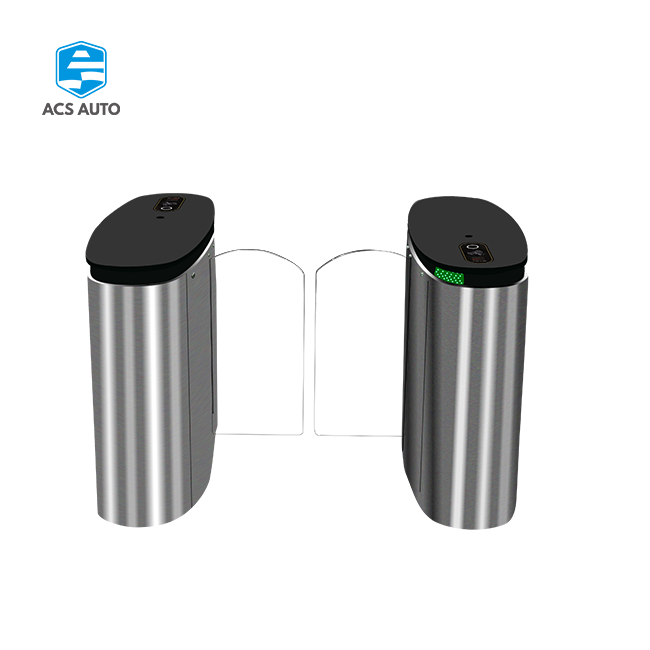

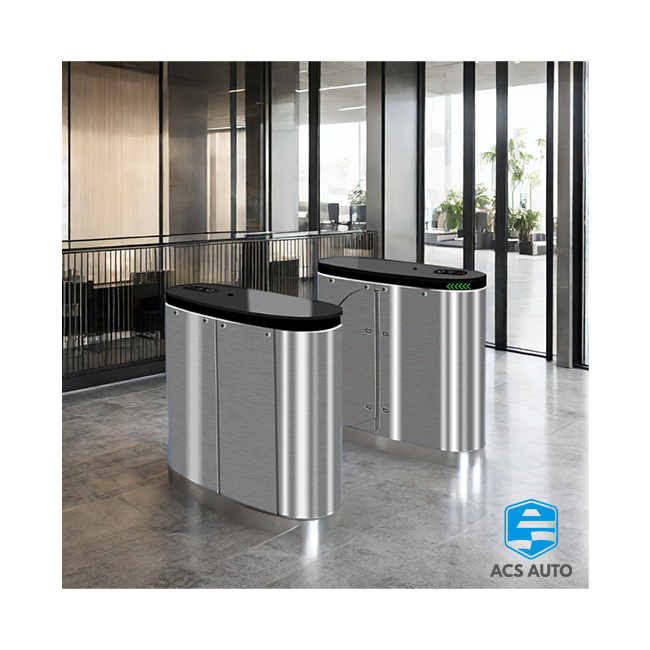

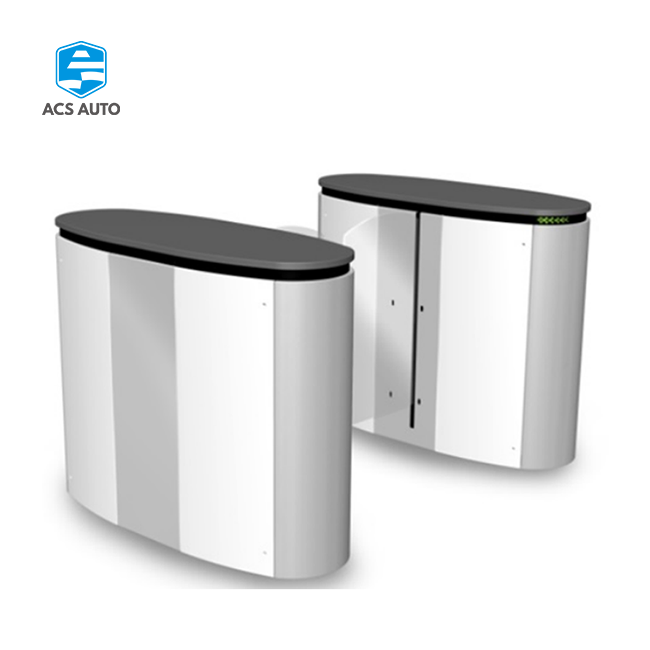

Sliding Gate ACS-801

√ The system includes high operational infrared detection system, which can simulate human movement trajectory to protect traffic safety. And set up a special protection sensor between the door wings, efficient and precise infrared detection system at the same time to ensure the safety of security management, and can output anti-tailgating/reverse/illegal entry/failure and other types of sound and light alarm letters.

√ Adopt the self-developed “infrared anti-clip + mechanical anti-clip + current detection anti-collision” triple anti-clip technology to fully protect the safety of pedestrians;

√ The drive device is advanced non-destructive motor technology, no need to use a gearbox or clutch, so the motor will not wear. There is no need to carry out a variety of lubrication treatment, that is, reduce noise and improve service life;

√ Intelligent voice broadcasting makes the movement debugging simple and easy to maintain;

√ Humanized voice broadcast, greatly improve the efficiency of traffic;

√ With interactive function Settings, convenient for users to use in different environments, such as: swipe card in, infrared induction out of the switch, without adding any changes;

√ The opening and closing speed can be set to facilitate the use of different people places;

√ With accurate counting function;

√ With RS232 or RS485 communication interface;

√ Traffic mode is optional, normally open mode or normally closed mode;

√ The system has power-on self-test, automatic reset, independent research and development of mechanical structure, the system will automatically unlock the door pendulum when the power is off, and can be manually pushed into the open state to facilitate evacuation of people;
